Machining Tolerances Explained: A Practical Guide

Precision CNC machining in impeller manufacturing

Key Insight	Explanation
Tolerance defines allowable variation	Every machined dimension has an upper and lower limit; the gap between them is the tolerance band.
Standard CNC tolerance is ±0.005″ (±0.127 mm)	This is the industry default for CNC turning and milling; tighter tolerances require specialized processes and cost more.
Four GD&T tolerance types govern geometry	Form, orientation, location, and run-out tolerances collectively define how a part must look, sit, and move.
ISO 2768 and ASME Y14.5 are key standards	These frameworks standardize tolerance classes globally, reducing ambiguity between designers and machinists.
Tighter tolerances increase cost non-linearly	Going from ±0.005″ to ±0.001″ can double or triple machining cost due to slower feeds, more tool passes, and 100% inspection.
Certification matters for compliance industries	ISO 9001:2015, ISO 13485:2016, and IATF 16949 certification ensures tolerance compliance is documented and auditable.

Machining tolerances explained simply: a tolerance is the total permissible variation in a part’s dimension, defining the upper and lower limits within which a machined feature must fall to be considered acceptable. Get it right, and parts assemble perfectly and function reliably. Get it wrong, and you’re looking at scrap, rework, assembly failures, and compliance headaches. Whether you’re a procurement manager sourcing small precision components or an engineer reviewing a drawing for the first time, understanding how tolerances work is non-negotiable. This guide covers what tolerances are, the four main types, the standards that govern them, how they’re achieved on the shop floor, and the mistakes that inflate cost and kill quality.

What Are Machining Tolerances?: machining tolerances explained

Machining tolerance is the allowable amount of dimensional variation in a manufactured part, expressed as a range between a maximum and minimum acceptable measurement. No machine tool cuts to a perfectly exact dimension every time. Tolerance acknowledges that reality and sets the boundary between a usable part and a reject. [1] This is particularly relevant for machining tolerances explained.

The Basic Terminology You Need to Know

A few terms appear on every engineering drawing, and confusing them leads to real production problems:

Nominal dimension: The ideal, target measurement specified on the drawing (e.g., 25.00 mm).
Upper deviation: The maximum allowable departure above the nominal dimension.
Lower deviation: The maximum allowable departure below the nominal dimension.
Tolerance band: The total range between upper and lower limits (upper minus lower deviation).
Bilateral tolerance: Variation is permitted in both directions, e.g., 25.00 ±0.05 mm.
Unilateral tolerance: Variation is permitted in only one direction, e.g., 25.00 +0.00 / -0.10 mm.

According to the ASME Y14.5 standard, tolerances must be specified for every dimension on a drawing where fit, form, or function could be affected. [2] In practice, general tolerances (also called block tolerances) cover dimensions that aren’t individually called out.

Why Tolerances Matter Beyond the Drawing

A tolerance isn’t just a number on paper. It directly drives machine selection, tooling, cycle time, inspection method, and unit cost. The tighter the tolerance, the slower the cut, the more inspection checkpoints required, and the higher the scrap risk. When considering machining tolerances explained, this point stands out.

In one project we handled at MFG SOLUTION, a medical device client specified ±0.01 mm on a shaft diameter that only needed ±0.05 mm for its actual function. Relaxing that single callout reduced machining time by 30% and cut inspection costs in half, with zero impact on part performance. That’s the practical power of understanding tolerances from the start.

Pro Tip: Always ask “what does this tolerance actually control in assembly?” before tightening a callout. Tolerances that don’t serve a functional purpose add cost without adding value.

Types of Machining Tolerances and GD&T

There are four primary categories of machining tolerances, each controlling a different geometric characteristic of a part. Together, they form the foundation of Geometric Dimensioning and Tolerancing (GD&T), the symbolic language used on engineering drawings worldwide. [3]

The Four GD&T Tolerance Categories

Form tolerances: Control the shape of a single feature in isolation. Examples include flatness, straightness, circularity (roundness), and cylindricity. No datum reference is required.
Orientation tolerances: Control how a feature is angled relative to a datum. Includes parallelism, perpendicularity, and angularity.
Location tolerances: Define where a feature must be relative to a datum or other features. Position, concentricity, and symmetry fall here. Position is the most commonly used GD&T callout in precision machining.
Run-out tolerances: Measure how much a surface deviates as a part rotates around a datum axis. Circular run-out and total run-out are critical for rotating components like shafts and spindles.

According to the Precision Machined Products Association (PMPA), specifying the correct tolerance type is as important as specifying the correct value. [4] Using a location tolerance where a form tolerance is needed, for example, can result in parts that pass inspection but fail in assembly. For those exploring machining tolerances explained, this matters.

Dimensional vs. Geometric Tolerances

It helps to separate two broad classes:

Tolerance Class	What It Controls	Common Examples	Typical Application
Dimensional (Linear)	Size of a feature	Diameter, length, depth	Shaft-to-hole fits, thread depth
Form	Shape of a surface	Flatness, roundness	Sealing surfaces, bearing bores
Orientation	Angle relative to datum	Parallelism, perpendicularity	Mating faces, mounting surfaces
Location	Position of a feature	True position, concentricity	Bolt hole patterns, bores
Run-out	Deviation during rotation	Circular run-out, total run-out	Shafts, spindles, rotors

GD&T, standardized under ASME Y14.5-2018 in the United States and ISO 1101 internationally, gives engineers a precise, unambiguous way to communicate these requirements to machinists. [5]

How Machining Tolerances Are Achieved in Practice

Achieving a specified tolerance requires the right combination of machine capability, tooling, workholding, process control, and inspection. No single factor is enough on its own. [6] This directly impacts machining tolerances explained outcomes.

Machine Capability and Process Selection

Different machining processes have different inherent capability ranges. Selecting the right process for the required tolerance is the first decision:

CNC Turning: Typically achieves ±0.005″ (±0.127 mm) as a standard tolerance; capable of ±0.001″ (±0.025 mm) with fine finishing passes.

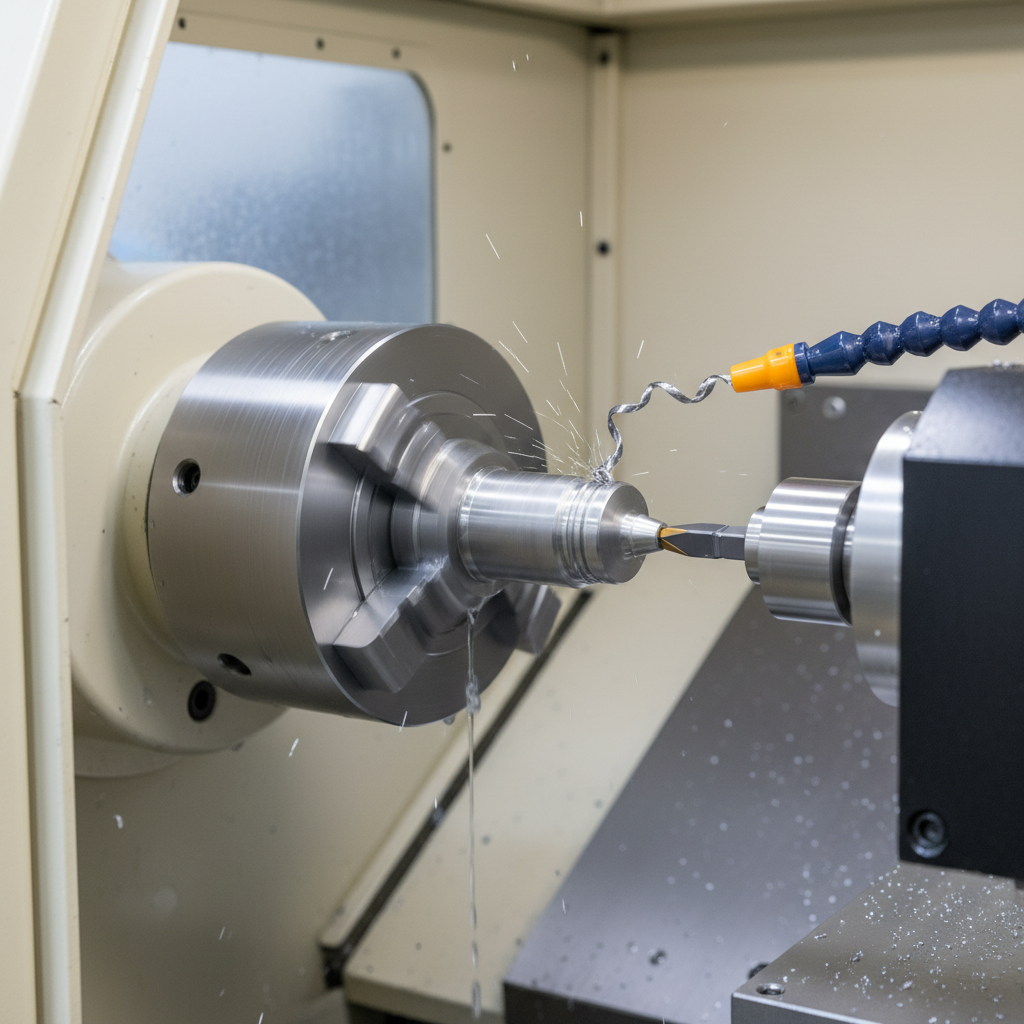

Swiss Lathe (Swiss Screw Machining): Excels at long, slender parts up to 38 mm diameter, routinely holding ±0.002″ (±0.05 mm) with excellent surface finish. Ideal for medical pins, shafts, and connectors.
3-Axis CNC Milling: Standard tolerance ±0.005″ (±0.127 mm); complex features may require ±0.001″ with additional setups.
5-Axis CNC Milling: Achieves ±0.005″ or better in a single setup, reducing fixturing errors that accumulate across multiple setups.
Automatic Lathe: High-volume production of simple turned parts, typically holding ±0.005″ to ±0.003″ economically.
Cold Forging: Near-net-shape process; dimensional tolerances typically ±0.1 mm to ±0.3 mm, but dramatically reduces material waste and machining time for suitable geometries.

Industry analysts at the University of Florida’s engineering design lab note that process capability (Cp and Cpk indices) should be evaluated before committing to a tolerance on a high-volume part. [6] A Cpk of 1.33 or higher is the minimum acceptable for production runs in automotive and medical applications.

Workholding, Tooling, and Inspection

Even the most capable machine tool will fail to hold tolerance if the workholding is inadequate. Vibration, thermal expansion, and tool wear all erode dimensional accuracy over a production run. This is particularly relevant for machining tolerances explained.

Rigid workholding (collets, hydraulic chucks) minimizes part movement during cutting.
Sharp, properly selected cutting tools reduce cutting forces and heat generation.
In-process gauging (probing during machining) catches drift before it produces scrap.
Post-process inspection with CMM (Coordinate Measuring Machine), air gauging, or optical comparators verifies conformance.

At MFG SOLUTION, we’ve found that combining in-process probing on our 5-axis CNC machines with final CMM inspection is the most reliable method for holding ±0.01 mm tolerances consistently across production batches, even on complex geometries.

Pro Tip: Specify surface finish (Ra value) alongside dimensional tolerances. A tight dimensional tolerance on a rough surface can still cause assembly or sealing failures. Ra 0.8 µm is a common starting point for precision mating surfaces.

Tolerance Standards for 2026: ISO 2768, ISO 286, and ASME Y14.5

Three major standards govern machining tolerances globally, and knowing which applies to your drawing prevents costly miscommunication between design teams and suppliers. [7]

ISO 2768: General Tolerances for Linear and Angular Dimensions

ISO 2768 defines four tolerance classes for linear dimensions and three for angular dimensions. It’s used when individual tolerances aren’t specified for every feature, reducing drawing clutter: When considering machining tolerances explained, this point stands out.

ISO 2768 Class	Symbol	Tolerance on 30-120 mm	Typical Use
Fine	f	±0.15 mm	Precision machined parts
Medium	m	±0.30 mm	General machining
Coarse	c	±0.80 mm	Heavy machining, castings
Very Coarse	v	±1.50 mm	Rough stock, weldments

ISO 286 and ASME Y14.5

ISO 286 governs limits and fits for cylindrical features (shafts and holes), defining tolerance grades from IT01 (extremely precise) through IT18 (very coarse). [8] IT5 to IT7 covers most precision shaft-to-bore fits in automotive and industrial applications.

ASME Y14.5-2018 is the dominant standard in North American manufacturing. It defines GD&T symbols, datum reference frames, and the interpretation rules that machinists and inspectors use to verify parts. As of 2026, most global suppliers working with North American OEMs are expected to be fluent in both ISO and ASME systems.

Research from 3ERP indicates that specifying the applicable standard on the drawing title block eliminates a significant source of supplier-buyer disputes. [9] Always state whether your drawing follows ISO or ASME conventions. For those exploring machining tolerances explained, this matters.

Common Challenges and Costly Mistakes

Tolerance-related errors are among the most expensive problems in precision manufacturing, driving scrap rates, rework costs, and delivery delays. Most are avoidable. [10]

Over-Tolerancing: The Most Common (and Expensive) Error

Over-tolerancing means specifying tighter tolerances than the part’s function actually requires. It’s the single most common design error in precision machined parts, and it’s often driven by a “tighter is safer” mindset that doesn’t hold up economically.

Tighter tolerances require slower cutting speeds, more passes, and more frequent tool changes.
Inspection costs rise sharply: 100% CMM inspection vs. statistical sampling.
Scrap rates increase because the acceptance window is narrower.
Lead times lengthen because fewer parts pass first-time inspection.

A procurement manager at a mid-size electronics OEM recently shared a case where switching from ±0.01 mm to ±0.05 mm on a non-critical housing feature reduced piece cost by 22% and cut lead time by two days. The part function was identical. This directly impacts machining tolerances explained outcomes.

Under-Tolerancing, Stack-Up Errors, and Missing Callouts

Under-tolerancing (too loose) causes fit and function failures. But tolerance stack-up is subtler and equally dangerous. Stack-up occurs when multiple tolerances in an assembly accumulate, pushing the final fit outside acceptable limits even though each individual part passed inspection.

Always perform a worst-case or statistical tolerance stack-up analysis for assemblies with three or more mating parts.
Missing tolerance callouts on drawings force the machinist to interpret, often using shop defaults that may not match design intent.
Conflicting tolerances (dimensional and GD&T callouts that contradict each other) are a common source of NCRs (non-conformance reports).

Pro Tip: Run a tolerance stack-up simulation before releasing drawings to production. Free tools like the CETOL 6σ methodology or even a simple worst-case Excel model can prevent assembly failures that cost 10-100x more to fix after parts are made.

Best Practices for Specifying Tolerances in 2026

Specifying tolerances correctly from the start is the highest-leverage action a design or procurement team can take to control part cost and quality. [11]

A Practical Framework for Tolerance Assignment

Follow this sequence when assigning tolerances to a new part design: This is particularly relevant for machining tolerances explained.

Identify functional requirements: Which dimensions directly affect fit, function, or safety? These get individually specified tolerances.
Assign standard tolerances to non-critical features: Use ISO 2768-m (medium) or your shop’s default block tolerance for features that don’t affect assembly.
Select the appropriate tolerance type: Use dimensional tolerances for size; use GD&T for shape, orientation, location, and run-out.
Check process capability: Confirm your chosen machining process can reliably achieve the specified tolerance (Cpk ≥ 1.33).
Run a stack-up analysis: Verify that individual part tolerances, when combined, keep the assembly within functional limits.
Review with your machinist before release: A 15-minute DFM (Design for Manufacturability) review can catch tolerance errors before they become production problems.

Material, Geometry, and Supplier Capability Considerations

Material choice affects achievable tolerance. Aluminum and brass machine more easily than hardened steel or titanium, so tighter tolerances are more economical in softer materials. Part geometry matters too: long, slender features are harder to hold to tolerance than short, rigid ones.

For parts up to 38 mm diameter, Swiss lathe machining is often the most cost-effective route to tolerances below ±0.02 mm.
CNC Mill & Turn combines turning and milling in a single setup, eliminating re-fixturing errors that are a major source of tolerance drift.
Confirm your supplier’s quality certifications. ISO 9001:2015 ensures a documented quality management system; IATF 16949 adds automotive-specific process controls; ISO 13485:2016 adds medical device traceability requirements.

Our team at MFG SOLUTION recommends requesting a First Article Inspection (FAI) report on new part numbers. An FAI documents every critical dimension against the drawing, giving you a documented baseline before full production begins. This is standard practice under IATF 16949 and ISO 13485 and is something we provide as part of our quality assurance process.

Industry data from MakerVerse indicates that parts with well-specified tolerances (functional features individually called out, non-critical features using block tolerances) have 30-40% lower rework rates than parts with either blanket tight tolerances or missing callouts. [12] When considering machining tolerances explained, this point stands out.

Sources & References

Frequently Asked Questions

1. What are reasonable tolerances for machining?

Reasonable machining tolerances depend on the process and the part’s functional requirements. For CNC turning and 3-axis or 5-axis CNC milling, ±0.005″ (±0.127 mm) is the widely accepted industry standard for general precision work. Swiss lathe machining routinely achieves ±0.002″ (±0.05 mm) on small-diameter parts. For non-critical features, ISO 2768-m (±0.30 mm on dimensions between 30-120 mm) is a practical default that keeps costs controlled. Always match the tolerance to the function, not to a general preference for “tight.”

2. Is ±0.005″ a tight tolerance?

±0.005″ (±0.127 mm) sits at the boundary between standard and moderately tight in CNC machining. It’s achievable on most modern CNC lathes and mills without special process controls, making it the de facto industry standard. Truly tight tolerances begin at ±0.001″ (±0.025 mm) or below, requiring slower feeds, precision tooling, temperature-controlled environments, and 100% dimensional inspection. Going below ±0.001″ moves into the realm of precision grinding or honing rather than conventional CNC machining, and costs increase significantly.

3. What are the 4 types of tolerances in machining?

The four GD&T tolerance types are: (1) Form tolerances, which control the shape of individual features such as flatness, straightness, roundness, and cylindricity without reference to a datum; (2) Orientation tolerances, which control the angle of a feature relative to a datum, including parallelism, perpendicularity, and angularity; (3) Location tolerances, which define where a feature sits relative to a datum or other features, covering true position, concentricity, and symmetry; and (4) Run-out tolerances, which measure surface deviation as a part rotates about a datum axis, critical for shafts and rotating components. Machining tolerances explained through this GD&T framework give designers precise control over every geometric aspect of a part.

4. What does a 0.05 mm tolerance mean?

A tolerance of ±0.05 mm means the actual dimension can be up to 0.05 mm larger or smaller than the nominal value and still be acceptable. For a nominal dimension of 25.00 mm, the acceptable range is 24.95 mm to 25.05 mm, giving a total tolerance band of 0.10 mm. This falls within the “fine” class under ISO 2768-f for dimensions in the 30-120 mm range and is achievable on standard CNC turning and milling equipment without special process controls, making it a cost-effective choice for precision fits that don’t require ultra-tight tolerances. For those exploring machining tolerances explained, this matters.

5. How does material choice affect achievable machining tolerances?

Material machinability directly affects how tight a tolerance can be held economically. Free-machining brass and aluminum alloys are dimensionally stable during cutting and allow tighter tolerances at lower cost. Stainless steel and titanium generate more heat and cutting forces, causing thermal expansion and tool deflection that erode dimensional accuracy, making tight tolerances more expensive to achieve and maintain. Hardened steels (above 45 HRC) typically require grinding rather than CNC turning to hold tolerances below ±0.01 mm. Always discuss material selection with your machining supplier early in the design process.

6. What is tolerance stack-up, and why does it matter?

Tolerance stack-up occurs when the individual tolerances of multiple mating parts accumulate in an assembly, potentially pushing the final fit or clearance outside acceptable limits even though every individual part passed inspection. For example, if three components each have a ±0.05 mm tolerance on a mating dimension, the worst-case stack-up is ±0.15 mm, which may be too large for the assembly to function correctly. Performing a worst-case or statistical (RSS) stack-up analysis before releasing drawings to production is essential for any assembly with three or more mating features.

Understanding machining tolerances explained through these questions gives engineers and procurement teams the foundation to specify parts correctly, control costs, and avoid the most common production failures.

Conclusion

Machining tolerances aren’t just numbers on a drawing. They’re the specification language that connects design intent to manufactured reality, and getting them right is one of the highest-leverage decisions in product development and supply chain management. Specify too tight, and you pay for precision you don’t need. Specify too loose, and parts fail in assembly. The middle path is functional tolerance specification: tight where it matters, relaxed where it doesn’t, and always matched to a process that can deliver it reliably. This directly impacts machining tolerances explained outcomes.

As of 2026, the best-performing procurement teams combine solid tolerance knowledge with certified supplier partnerships. ISO 9001:2015, ISO 13485:2016, and IATF 16949 certifications aren’t just compliance checkboxes. They’re evidence that a supplier’s process control is documented, auditable, and repeatable across every production run.

MFG SOLUTION specializes in high-precision small machined parts up to 38 mm diameter, with CNC Turning, Swiss Lathe, Cold Forging, Automatic Lathe, and CNC Mill & Turn capabilities. Our 60+ engineering professionals can review your drawings, flag tolerance concerns before production starts, and deliver a quote within 8 hours. Parts ship within 3 days. If tight tolerances and fast turnaround are non-negotiable for your next project, MFG SOLUTION is built for exactly that.
